Struts Design
All Electron-Retract struts are milled from AW 7075 T6 aeronautic grade aluminum, with a high level of precision and a demanding quality control, before being anodised and laser engraved.
Adjustable Rake on main struts
All Electron Retracts main struts come with an easily adjustable rake, just tighten or loosen the single grub screw at the back of the main leg to determine the exact angle and wheel position for a perfect fit in your specific model. A technological marvel that redefines the skies!
Main Struts Suspension
Not only do all Electron-Retracts legs come with spring suspension as standard, but the legs are actually notched to limit the maximum travel of the lower arm, thus preventing over scratching the spring and avoids early spring fatigue.
Thanks to the geometry of the leg, an exponential response is achieved from the spring. Thanks to this, while taxing the suspension absorbs small irregularities easily, with the response from the spring increasing exponentially in response to the higher loads received during takeoffs or landing. Always working optimally for each given situation.
Aside from this, three different types of spring can be used on each leg (soft, medium, hard) so you can choose the optimum strength for the model and runway.
Trailink link on Nose Struts
In a world where innovation is the key to staying ahead, our trailing link system empower you to push boundaries and elevate your aviation experience. Our nose Struts trailing-arm incorporates a shock-absorbing system that offers smoother landings. It will absorb the shock of the airplane as it touches down on the runway.

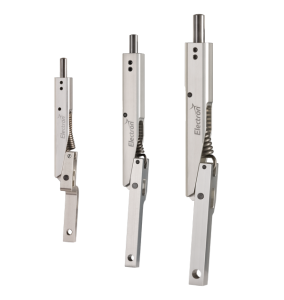

Variety of choice
Endless Options: Tailor your perfect fit with our diverse sizes and lengths!
Main Struts
| MODEL | Small Struts | Medium Struts | Large Struts |
|---|---|---|---|
| Use with | ER-30 | ER-40 | ER-50 |
| Connection pin diameter | 6 mm | 8 mm | 10 mm |
| Axle wheel diameter | 5 mm | 6 mm | 8 mm |
| Weight aprox. for each leg | – | 110 gr. | 140 gr. |
Nose Struts
| MODEL | Small Struts | Medium Struts | Large Struts |
|---|---|---|---|
| Use with | ER-30 | ER-40 | ER-50 |
| Connection pin diameter | 6 mm | 6 & 8 mm | 8 mm |
| Weight aprox. for each leg (with wheel) | 80 gr. | 140 gr. | 230 gr. |
Main Strut Diagram
Nose Strut Diagram
Main Struts
Nose Struts
We provide information, guides and videos to assure a correct installation and operation of our products. Additionally, our dedicated support team can offer assistance at any point of your build or setup as well as answering any queries along the way.
