Control Linkages
Following years of development, several designs, and tests, we are proud to present our new product line, Electron Control Linkages, accesories to provide with essential elements to the UAV industry and the aeromodelling world.
We have applied our vision and philosophy of improvement to transmission systems, to create products of unseen quality in today’s market.
These are not just regular servo arms.
Reliable and accurate movement, which guarantees the best possible control for the aircraft.
Lighter, better and stronger.

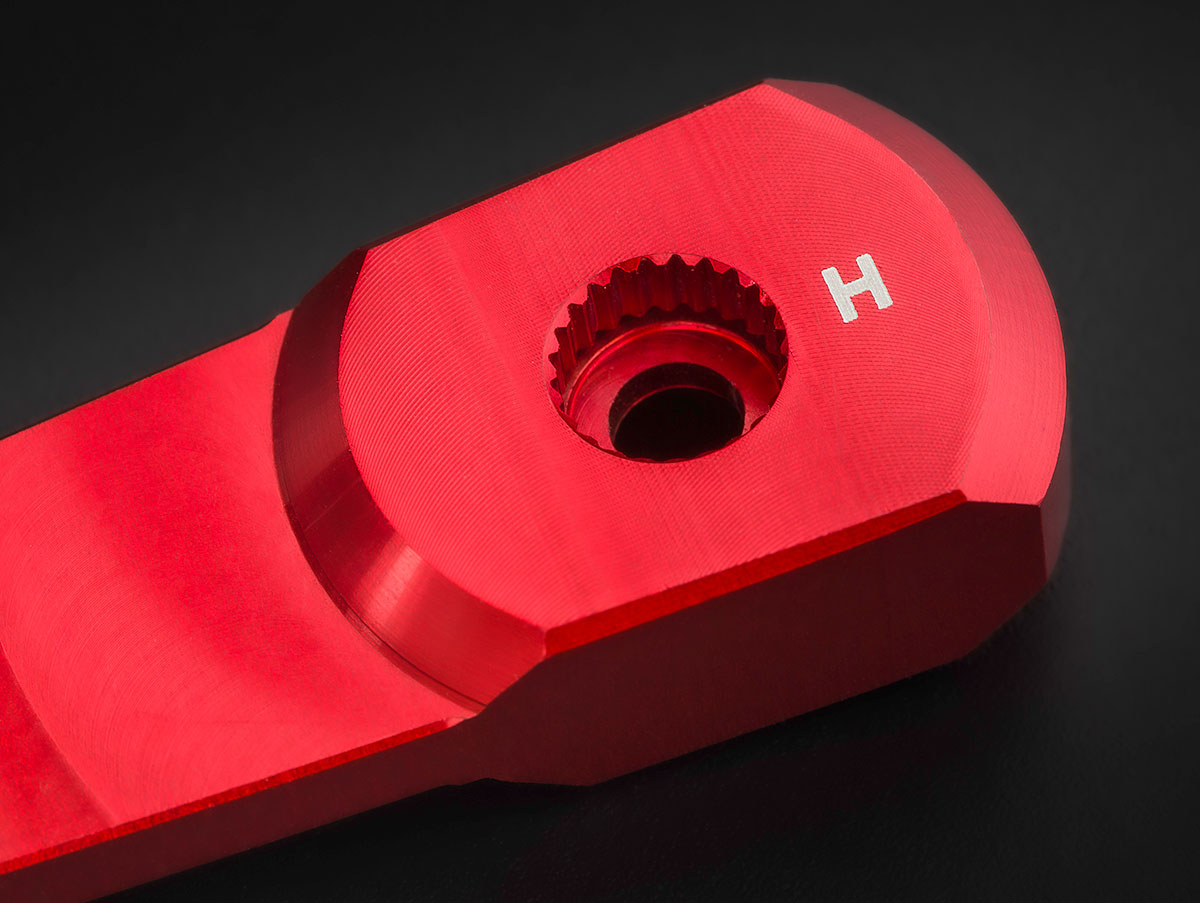

Servo Arms
These are not just regular servo arms. They have designed to be thicker where it is needed, and lighter in areas where weight can be saved.
Like our retracts, the servo arms are carefully made from aircraft grade aluminum, and anodized to provide with a protective and beautiful finish.
By using the latest manufacturing techniques, we can obtain a tight and precise fit to the servo motor, without resorting to additional screws to secure the arm in position.
With 4 different arm lengths available in stock, each of them available for 23, 24 and 25 teeth splines, our servo arms are compatible with the vast majority of servo motors in the market.
*For custom designs of this product, please contact us at info@electron-retracts.com

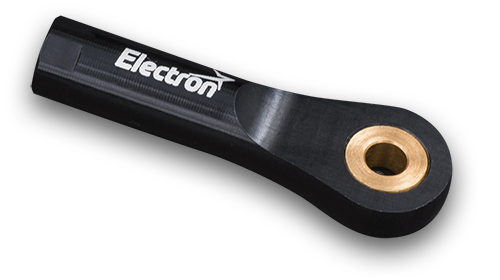

Ball Links
The body of our ball links is made from AW 7075 grade aluminum, while the ball is made from self-lubricating brass. This combination of materials makes the body very robust, when compared to plastic ball links, and they require no maintenance or grease.
Another advantage of the materials used is the precision that can be obtained. The fit between the ball and body provides a smooth movement, with barely no play between them. The result is reliable and accurate movement, which guarantees the best possible control for the aircraft.
The ball links are available in two different thread sizes (M3 and M4), both with right-hand and left-hand thread, making them very easy to integrate in your designs, or even to include as an upgrade for existing ones.
Linkage Rods
Our rods have been carefully designed to ensure a balance between robustness and lightness. An optimized shape to withstand substantial traction and compression loads, and even lateral loads that may occur during transport, preventing any possible damage on the transmission. Made of aircraft grade aluminum, and anodized to increase the resistance, and avoid wear-off and corrosion.
To adjust the length, simply rotate the rod in the direction desired. By using right-hand and left-hand threaded ball links with fine threads, getting the right length is quick and easy.
Currently 10 different lengths are available, from 60 mm up to 160 mm, allowing their use in many applications.
