Design
Our philosophy is “improvement is always possible” and from the first moment we dedicated ourselves to improving the magnetic brakes and their controller, resulting in a more reliable system.
Light but powerful
We work every day to improve our products, that is why our electric brakes are optimized to the maximum to provide a high braking torque at a low weight and consumption, thus managing the temperature during operation.
Durability
Due to the high quality materials used to produce the Electron Retracts brakes, these are long lasting and can be operated for years without loosing power or any maintenance being required.
Maximum precision
The friction produced between the brake disk and the electromagnet is never metal to metal. There is a middle layer produced from a low ware material that separates the disk by about 0,03 mm. This prevents any residual magnetism and assures that wheels roll freely once the brakes are deactivated.
Different sizes
We also have a variety of electromagnets to match your wheel
Brakes
| Model | Axle diameter | Weight (per unit) | Current (per unit) | Brake Torque (per unit) |
|---|---|---|---|---|
| 32 mm | 5 mm | 54 g | 0,6 A (at 8 DC V) | No data |
| 39 mm | 5, 6 mm | 100 g | 0,7 A (at 8 DC V) | No data |
| 50 mm | 6, 8 mm | 125 g | 1,3 A (at 8 DC V) 1,9 A (at 12 DC V) | 36 kg*cm (at 8 DC V) 45,5 kg*cm (at 12 DC V) |
| 80 mm | custom axis | 310 g (without axis) | 1,5 A (at 12 DC V) 2,8 A (at 24 DC V) | 150 kg*cm (at 12 DC V) 210 kg*cm (at 24 DC V) |
Electromagnetic brakes

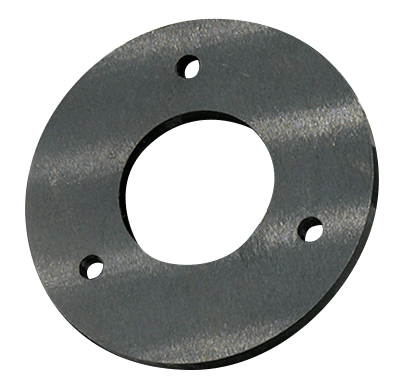

Disk
We provide information, guides and videos to assure a correct installation and operation of our products. Additionally, our dedicated support team can offer assistance at any point of your build or setup as well as answering any queries along the way.
