Details about Linear Actuator

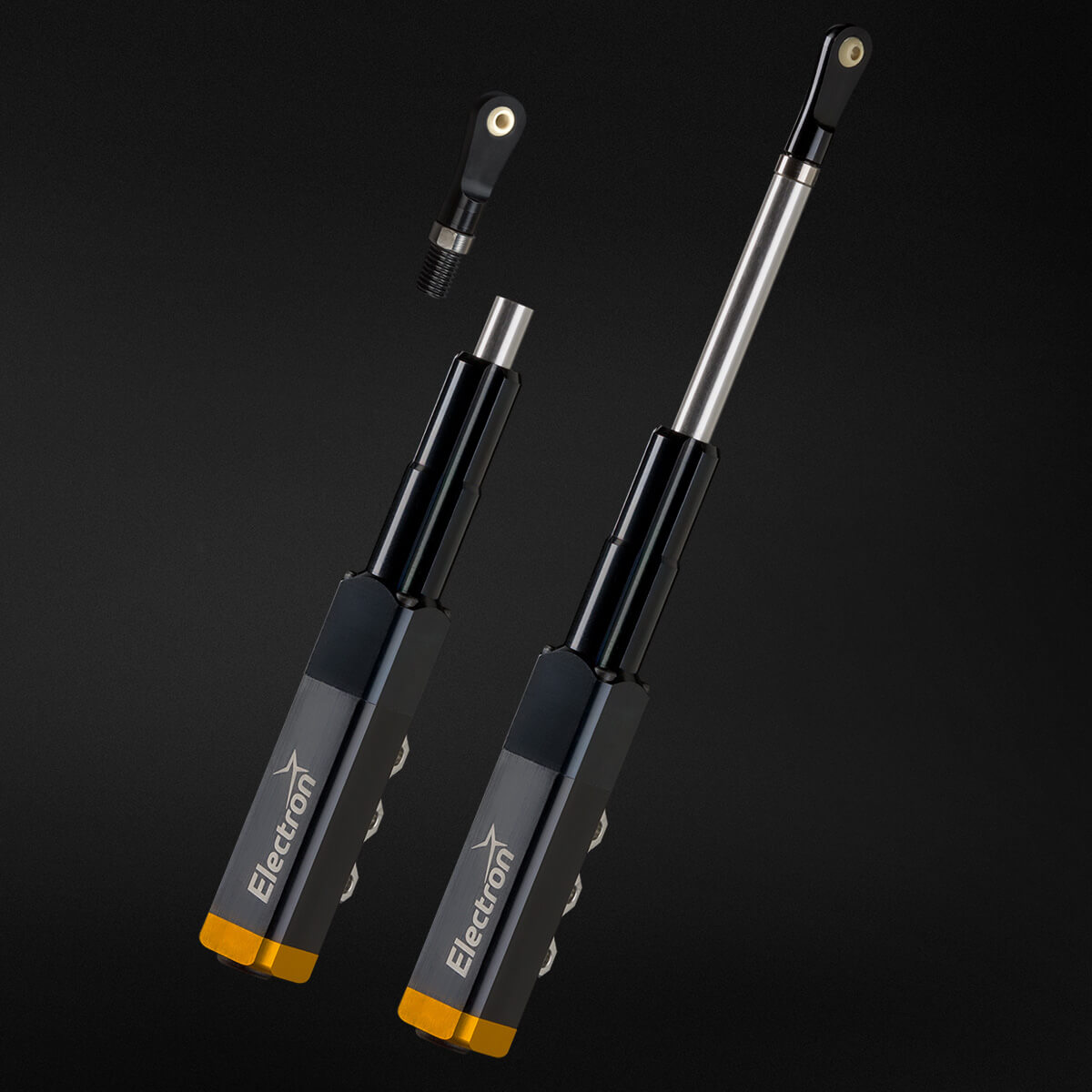

Linear Actuator
Linear torque that is unmatched by conventional servos or pistons.
Highlights:
- QUALITY & RELIABILITY: Like our retracts, linear actuators are machined from AW 7075 T6 aeronautic grade aluminum, with a high level of precision and a demanding quality control, resulting in a robust and reliable system.
- ROBUST & STRENGHT: Thanks to its design, Electron Retracts linear actuators provide a linear torque output much higher than regular servos and pistons, while keeping a small size format allowing for its installation on many situations.
- BETTER PERFORMANCE: Squared threaded spindle, specifically designed for this purpose, provides a completely axial force, with a 25% performance increase in comparison with conventional spindles.
- VERSATILE & EASY INSTALLATION: Thanks to the multiple mounting points on the actuator itself and the mounting bracket included, any number of different deflection angles can be achieved in order to match your requirements exactly.
What includes the Linear Actuator?
1x Linear Actuator with adjustable bracket
FAQ´s about Linear Actuator
-
Can I REVERSE the retract trunion, or change the RETRACTION ANGLE?
This is possible only in the “reversible version” of our retracts, released from January 2015 onwards. You can find the indicative “reversible” engraved next to the serial number.
-

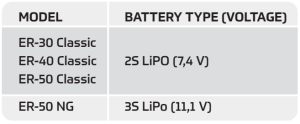

Can I use a 2S battery with ER-50 NG retracts?
ER-50 NG retracts are rated for 3S LiPo voltage. Therefore, the battery that you have to connect to the retract unit controller, should be a 3S battery.
With a 2S battery, the ER-50 NG retracts will work, but the speed and torque of the retract will be reduced. Depending on the length and weight of the strut and the wheel, and other factors, the performance of the retract with a 2S battery could be enough to operate properly.
-
What BATERY can I use with my retracts?
Electron suggest using a single small battery for retracts and brakes, and don´t share the receiver or engine battery.
500-900 mAh will be enough for at least 25 flights, so with a very small battery you will have power enough for a full flying day
-
What retracts can be upgraded to square thread SPINDLE?
All retracts purchased from January 2013. The serial number must start by 13, 14, 15, 16, etc… (the first two digit indicate the manufacturing year)
If you have any additional questions our dedicated support team can offer assistance at any point of your build or setup as well as answering any queries along the way.
